Star ETHERNET Printer Setup - Mac Computers

Avatar
Miguel
  • Updated
Follow

Ethernet Receipt Printer Setup (Star TSP100LAN) for Mac.

Install Using the Downloaded Driver

  1. Click on this link to download the driver: https://vsupport.azureedge.net/forums/tsp100_v750_lite.zip

  2. Open the downloaded file,

  3. Open the folder labeled tsp100_v750_lite.zip.

  4. Open the folder labeled Mac.

  5. Open the folder labeled Cups.

  6. Unzip the folder labeled starcupsdrv-4.7.0_mac.zip.

  7. Open the folder starcupsdrv-4.7.0_mac.

  8. Open the folder labeled Driver.

  9. Open starcupsdrv-4.7.0.pkg.

  10. Then, just follow the instructions on the wizard to finish the installation process for the drivers.

Obtaining IP Address for TSP100LAN

  1. Connect the printer to the router using the supplied ethernet cable, then power on the printer.

  2. Turn off the printer.

  3. Hold the feed button down, then, at the same time, turn the printer on.

  4. The printer will print out two test receipts.

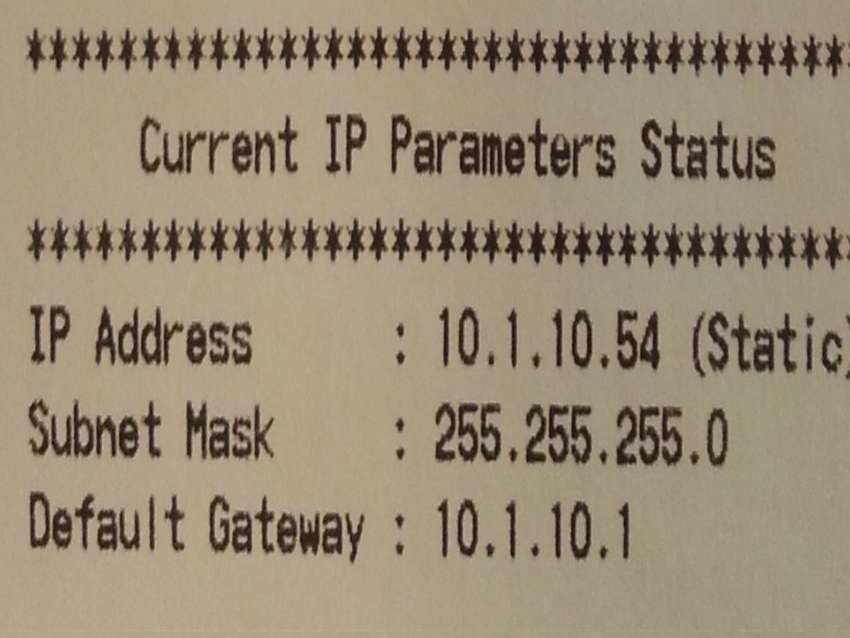

  5. At the bottom of the second page, it will list the Current IP Parameters Status:


  6. Write down the IP address.

Adding the printer

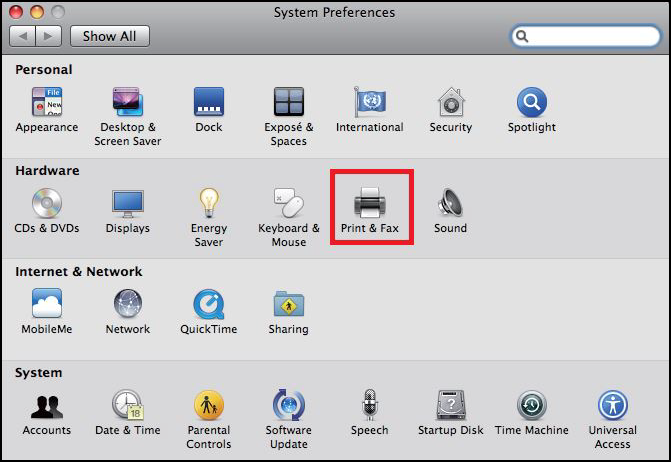

  1. Click the Apple icon in the top-left corner of the screen, then select System Preferences.

  2. Select Print & Fax.

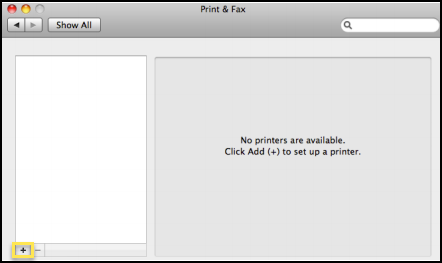

  3. On the Print & Fax screen, click the + icon to add the printer.

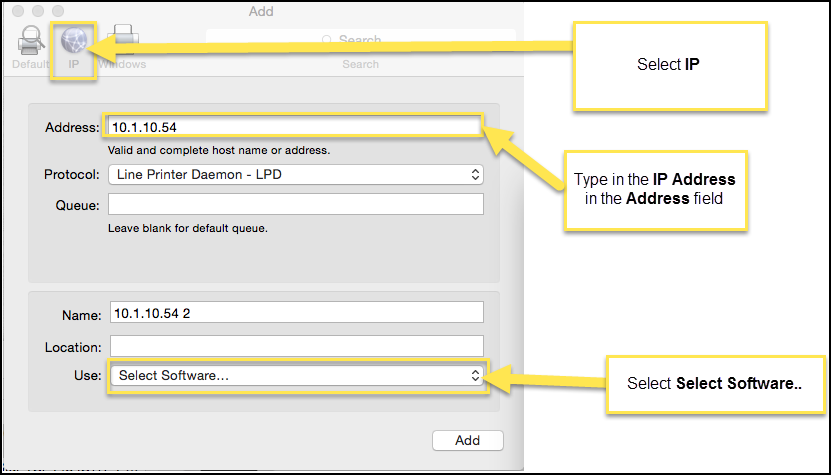

  4. Select IP, type the IP address in the Address field, then click Select Software....

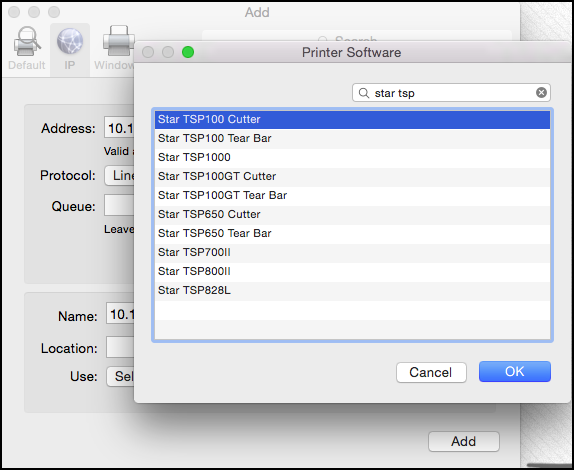

  5. On the Printer Software screen, search for Star TSP and select Star TSP100 Cutter.

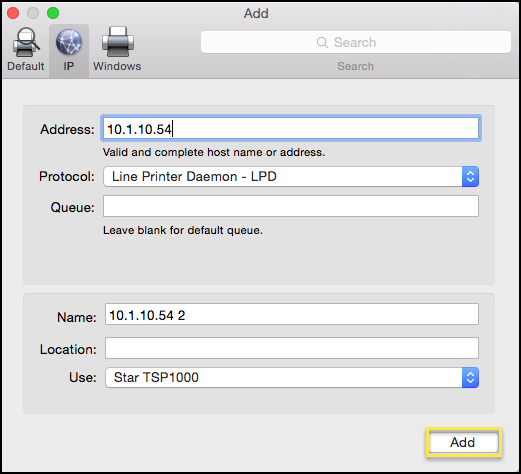

  6. Click Add.

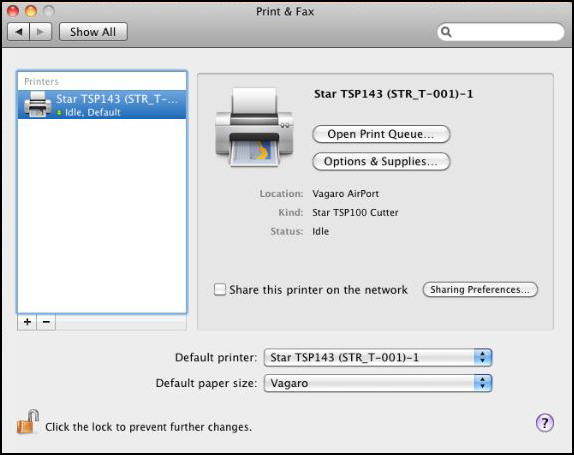

  7. In the Default Printer drop-down menu, select STAR TSP 100.


Printing a Sales Receipt and Changing Printer Settings

  1. Open Safari, go to Vagaro.com, and then log in.

  2. At Customer Checkout, select Print Receipt.

  3. A printer menu will appear. Make sure to expand the window by clicking the drop-down arrow.

  4. Deselect the Print Headers and Footers Box.

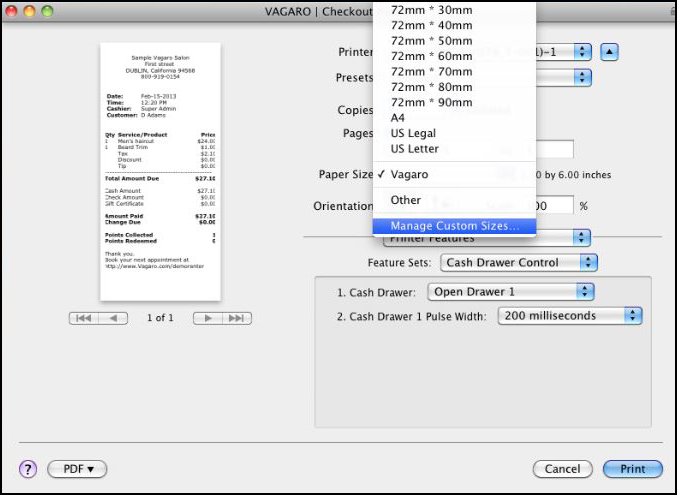

  5. Under Paper Size, select Manage Custom Sizes.

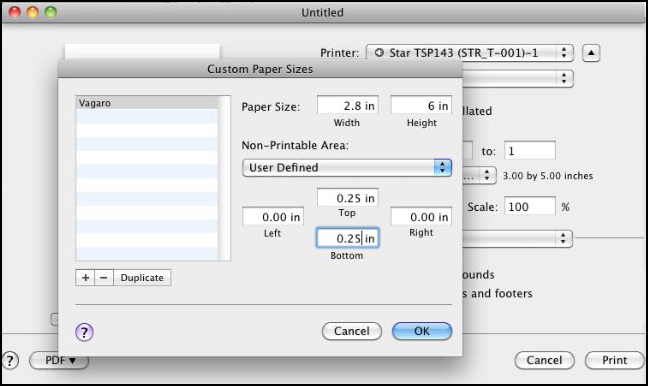

  6. Click the + icon under the List field.

  7. Double-click untitled and name it Vagaro.

  8. Follow the settings below and click OK.

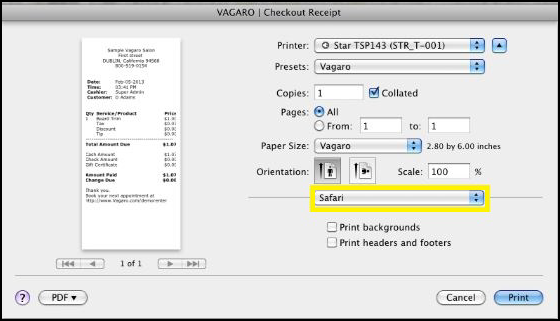

  9. Click the Safari drop-down menu and select Features.

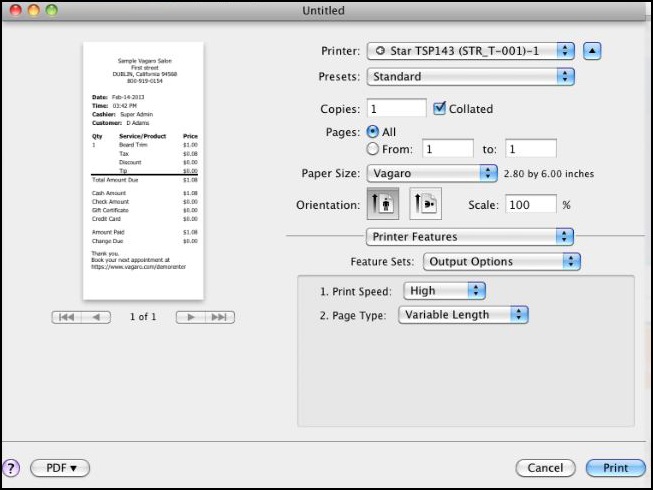

  10. From the Features drop-down menu, select Output Options.


  11. From the Feature Sets drop-down menu, select Cut Length.

  12. Set Page to No Cut and Document Cut to Partial Cut.

  13. On the Features drop-down menu, select Cash Drawer (if you don't have a cash drawer, you can skip this step.)

  14. On the Cash Drawer drop-down menu, select Open Drawer 1.

  15. On the Cash Drawer 1 Pulse menu, select 200 milliseconds.

  16. Make sure the cash drawer is plugged into the printer.

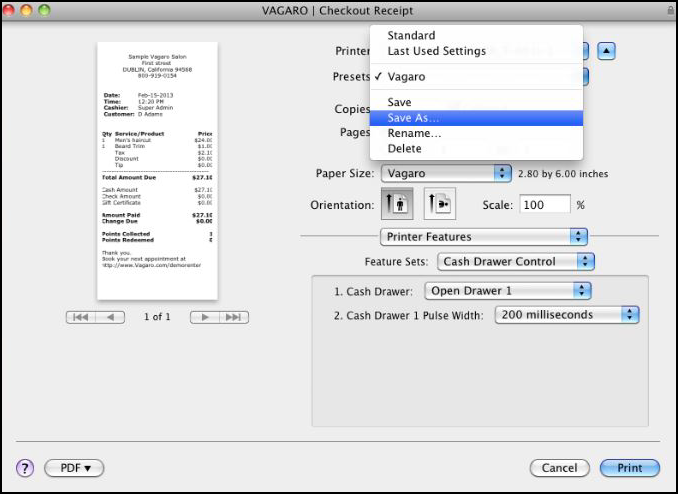

  17. Go to the Preset drop-down menu, select Save As, and save settings as Vagaro.
