Star ETHERNET Printer Setup - Windows Computers

Avatar
Donna J
  • Updated
Follow

Installing the Printer Drivers

  1. Click the link below to download the drivers:

    https://vsupport.azureedge.net/forums/tsp100_v750_lite.zip

  2. Extract All.

  3. Open the folder and double-click Autorun.exe.

  4. Click Installation on the screen that pops up.

  5. Click I Accept on the next screen that displays.

  6. Click Yes on the User Access Control screen.

  7. From there, follow the instructions on the wizard to finish installing the drivers.

Printer Configuration in Windows 8

  1. Connect the printer to the router using the supplied ethernet cable, then turn on the printer.

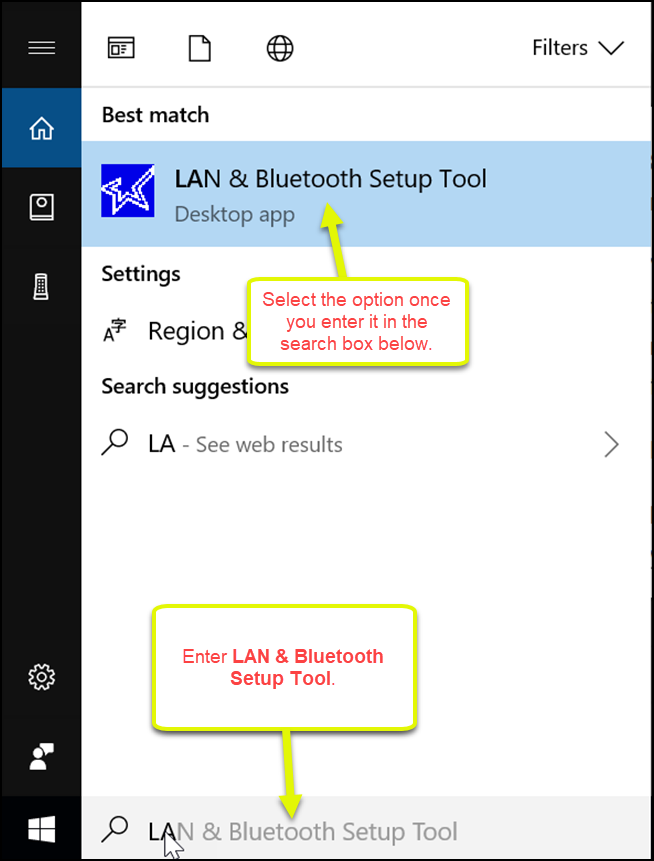

  2. Enter LAN & Bluetooth Setup Tool in the search box at the bottom of the screen. Click the option once it displays.


  3. A pop-up may appear, asking you if you want to make any changes to your device. Click Yes.

  4. A new window will pop up, and the system will conduct an automatic search for the printer.


  5. After it searches and locates the printer, click Add printer queue.

Setting up The Default Printer

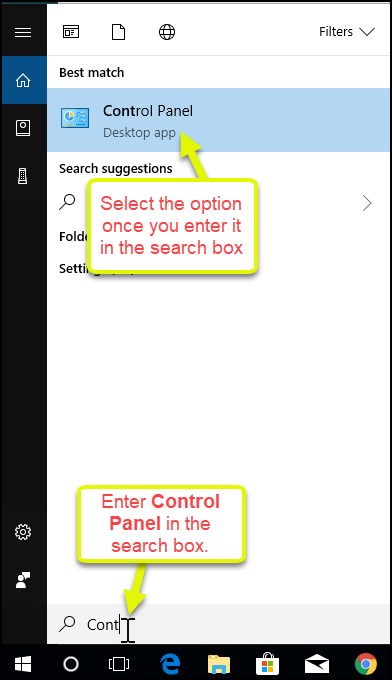

  1. Search for Control Panel in the search box and click it to open the Control Panel.

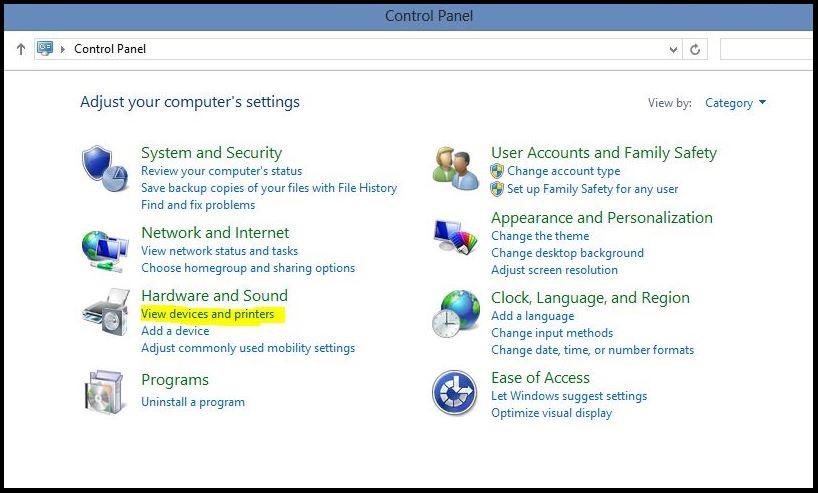

  2. Click View devices and printers.

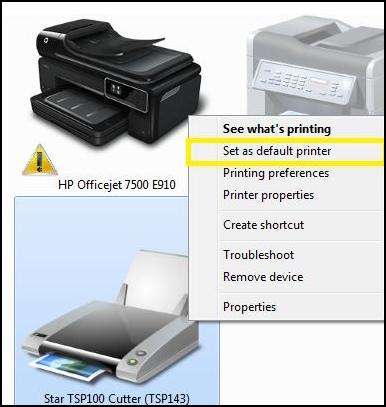

  3. Right-click the TSP 100 Printer icon and select Set as Default Printer.

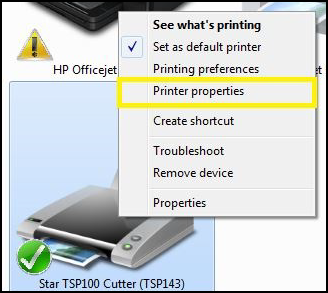

  4. Once the TSP 100 Printer is set as default, right-click on the icon again, then click Printer Properties.

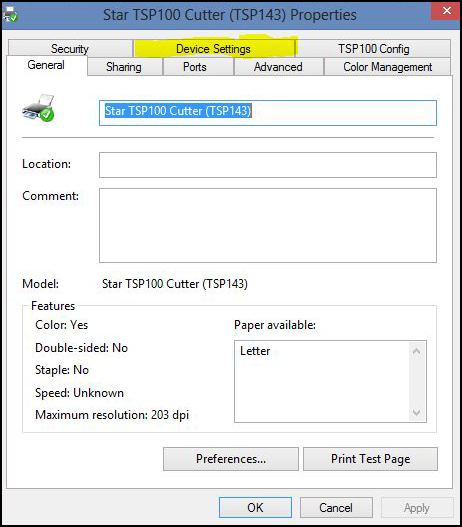

  5. When the Printer properties menu displays, click Device Settings.

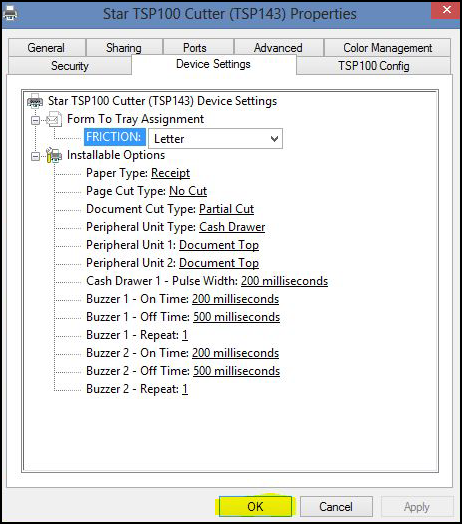

  6. On the Device Settings tab, follow the settings below, then click OK.


Setting up the Receipt on Firefox

  1. From Firefox, go to www.Vagaro.com

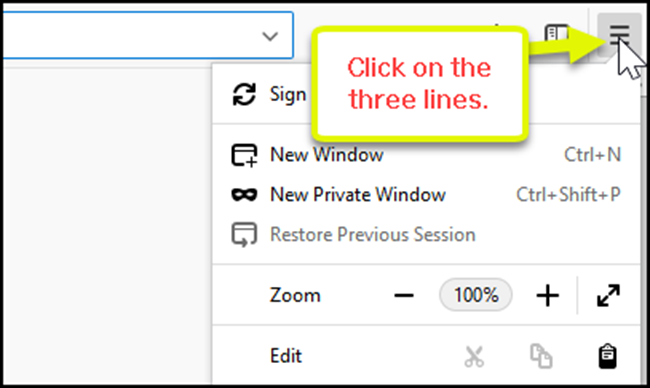

  2. Click on the More drop-down menu.

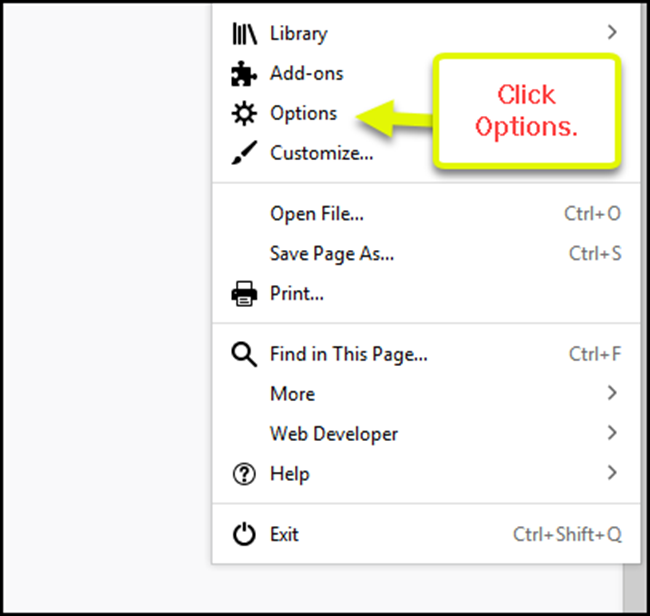

  3. Click Options.

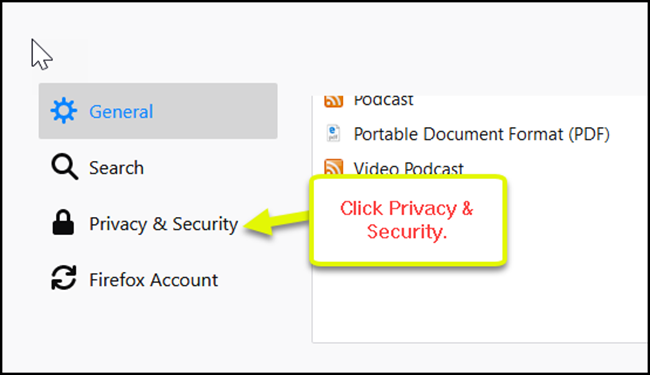

  4. Click Privacy & Security.

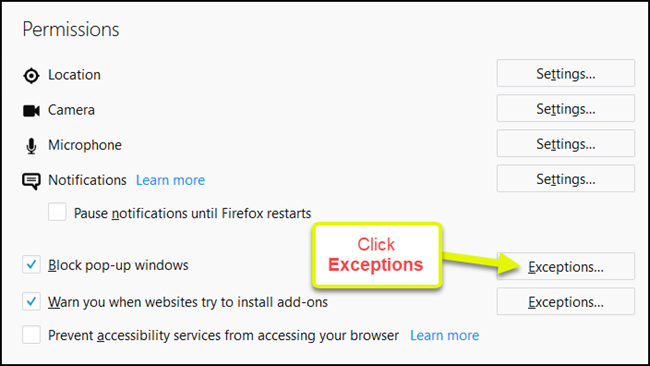

  5. Under the Permissions section, click Exceptions.

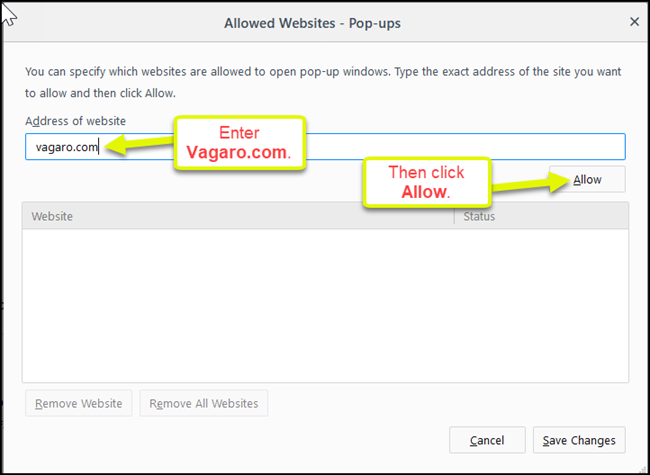

  6. Enter Vagaro.com in the Address of website field, then click Allow.

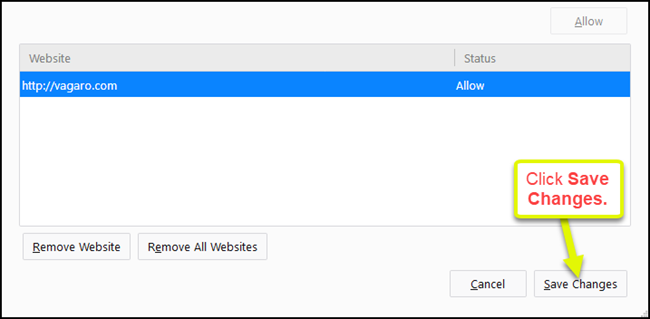

  7. Click Save Changes.


Printer Settings

Configure the Page Setup before printing receipts.

  1. Click the More drop-down menu.

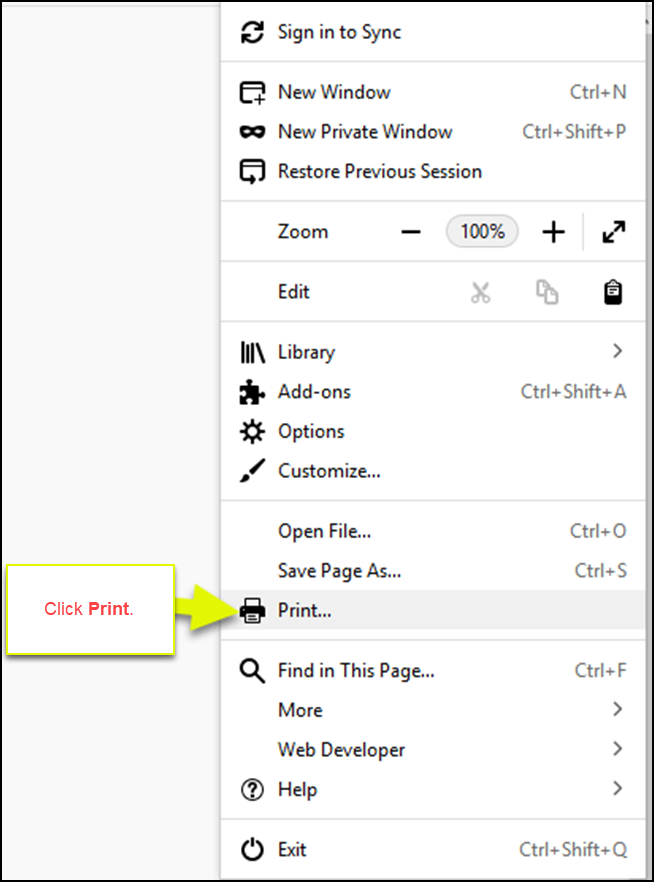

  2. Click Print.

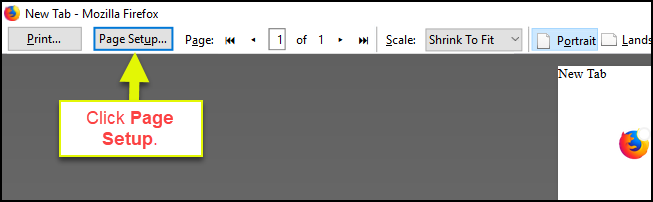

  3. Click Page Setup.

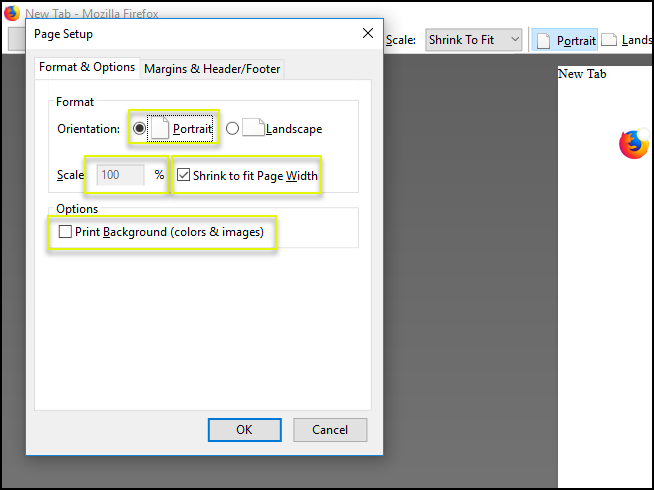

  4. In the Format & Options tab, set the following:

    • Make sure Orientation is set to Portrait

    • Scale should be set to 100%

    • Select Shrink to fit Page width

    • Deselect Print Background (colors & images)

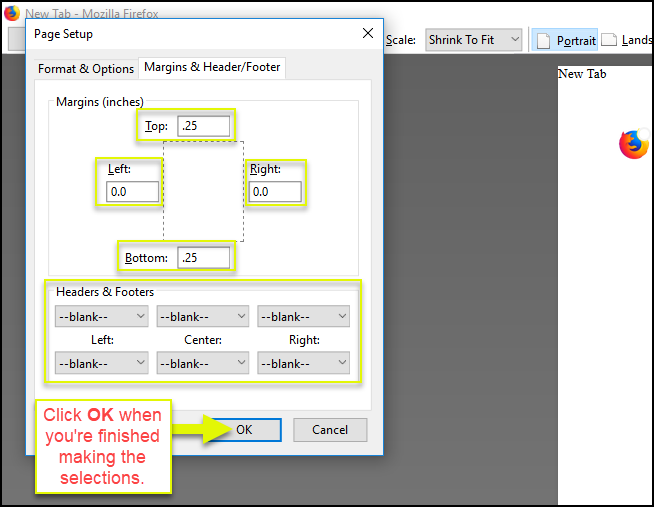

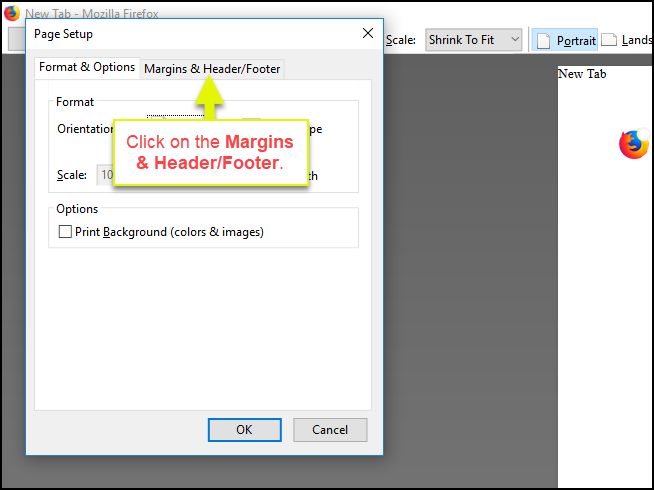

  5. Click the Margins & Header/Footer tab.


  6. Change these settings:

    • Set the Top and Bottom margins to 0.25

    • Set the Left and Right margins to 0.0

    • Set all of the Headers & Footers to --blank--


  7. Click OK at the bottom of the window. Your printer is now ready to use.
